CAM Casepack SMA80

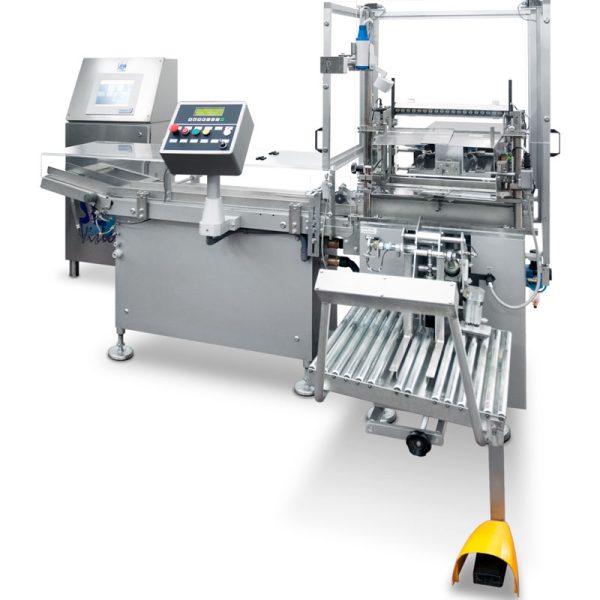

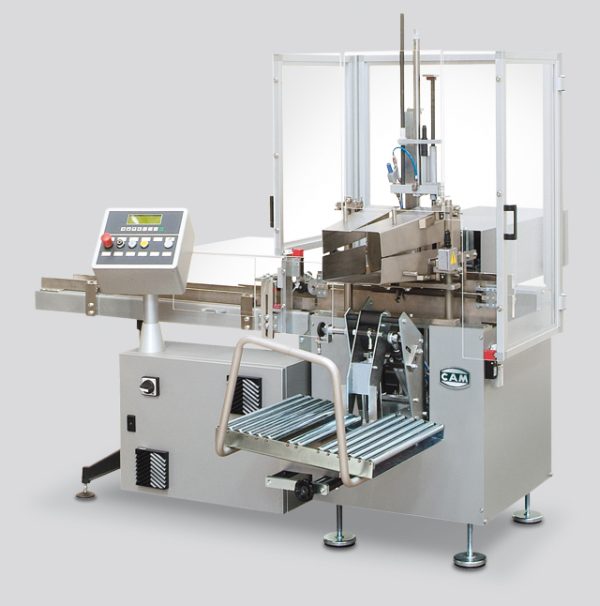

The semi-automatic casepacker modelSMA80 is the module for collation and arrangement in layers of products of the casepacking system model SM80. This module is equipped with a case support, on which the erected case is placed by the operator. By means of a pneumatic system enabled by the operator, the case support rotates by 90° and turns the case into the mouthpiece.

When the filling operations are completed, a full case detection device enables the case support to go back to its original position. Then the operator pushes manually the filled case towards the closing area and introduces a new case to be filled.
