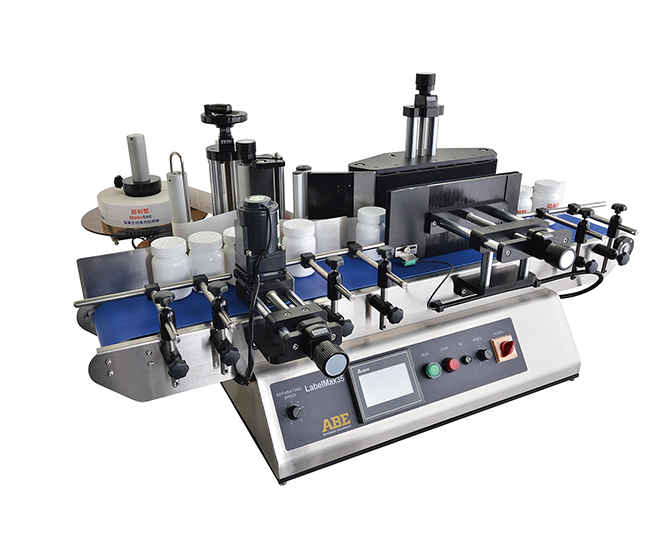

Markotech Desktop Round Bottle Labeling Machine

Mechanical Description

• It is suitable for small batches of desktop off-line labeling in various industries. It can be used for upright labeling of round containers. It is easy to operate and low in price. It can attach full or half-circle labels.

Mechanical Features

• Desktop type, easy to operate and low price, suitable for small batch off-line labeling.
• Adjustable labeling head, elastically adjust the labeling position.
• Driven by double servo motors, the speed can be automatically matched (linked).
• It adopts color touch screen and PLC man-machine system.
• The diameter of the paper tray is increased to 300mm.
• The whole machine is made of stainless steel and aluminum alloy.
• The conveyor is in the form of a belt.
• Standardized and modular design, easy maintenance.
• The electric eye adjustment seat adopts the screw tooth rotation type, and is equipped with a scale.

System Features

• The label electric eye is in front to respond to the lack of label status in time.
• Conveyor width up to 150mm, speed up to 20 m/min.
• The speed of the labeling machine can reach 20 m/min.
• The stand-alone is not connected, and the OFF-LINE is independently labeled.

Application field

• Food industry, cosmetics industry, cultural and creative stationery industry, daily chemical industry, pharmaceutical biotechnology, electromechanical industry, beverage, bottled water industry.
