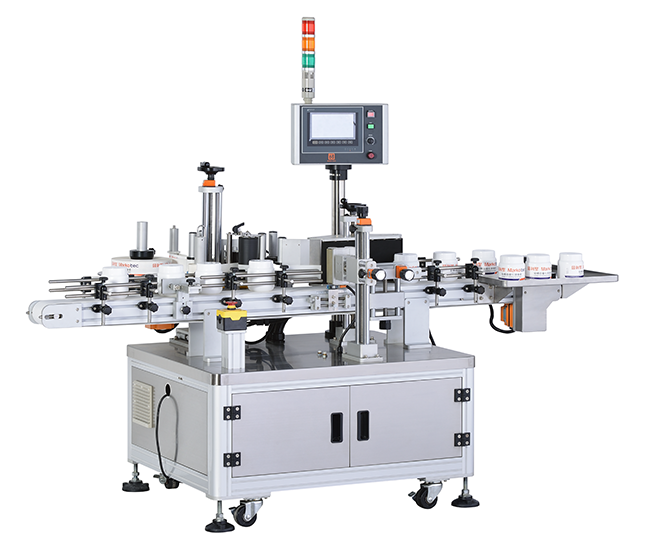

Markotech Round Bottle Positioning Labeling Machine

Mechanical Description

• It is suitable for vertical labeling of circular containers in various industries that require fixed labeling positions, such as: handle bottles, spray bottle bottles, intermittent labeling can be attached to single or double labels, full-circle or half-circle labels.

Mechanical Features

• Can be used with printers (foil, inkjet, thermal transfer, laser printers).
• It can be used for positioning (fixed point) or linear lamination, or a two-in-one model, which meets the requirements of precision and speed.
• Install the induction device to sense the fixed point to achieve high accuracy of labeling position.
• Driven by double servo motors, the speed can be automatically matched (linked).
• The diameter of the paper tray is increased to 300mm/400mm.
• The whole machine is made of stainless steel and aluminum alloy.
• Elastic choice of conveyor form, optional belt or crawler Top Chain.
• Standardized and modular design, easy maintenance.
• The electric eye adjustment seat adopts the screw tooth rotation type, and is equipped with a scale.

System Features

• It adopts color touch screen and PLC man-machine system.
• Conveyor width up to 100mm and speed up to 30 m/min.
• The speed of the labeling machine can reach 30/50 m/min.
• The labeling machine can be flexibly configured IN-LINE/OFF-LINE.

Application field

• Food industry, cosmetics industry, cultural and creative stationery industry, daily chemical industry, pharmaceutical biotechnology, electromechanical industry, beverage, bottled water industry.
